PEB ACCESSORIES

PEB ACCESSORIES

PEB stands for Pre-Engineered Building, which is a type of building that is constructed using prefabricated structural steel components. PEBs are commonly used in industrial and commercial buildings, warehouses, factories, and other similar structures. Here are some accessories that are commonly used in PEB construction:

  1. Roof and Wall Cladding: Roof and wall cladding are used to cover the PEB structure and provide protection from the weather. These cladding materials can be made from a variety of materials such as metal, fiberglass, or plastic.

  2. Skylights and Ventilation Systems: Skylights and ventilation systems are used to provide natural light and ventilation in PEB buildings. Skylights are installed on the roof, while ventilation systems are installed on the walls.

  3. Insulation: Insulation is used to regulate the temperature inside the PEB building. It helps to keep the building warm in winter and cool in summer, which can help to reduce energy costs.

  4. Doors and Windows: Doors and windows are essential accessories for any building, including PEBs. These can be made from a variety of materials such as steel, aluminum, or glass.

  5. Gutters and Downspouts: Gutters and downspouts are used to channel rainwater away from the PEB building. This helps to prevent water damage and keep the building in good condition.

  6. Lighting and Electrical Systems: Lighting and electrical systems are essential for any building, and PEBs are no exception. These systems can be customized to meet the specific needs of the building and the occupants.

  7. Cranes and Lifting Equipment: Cranes and lifting equipment are used in PEB buildings to move heavy materials and equipment. These can be installed inside or outside the building, depending on the needs of the building.

  8. Fire Suppression Systems: Fire suppression systems are essential for any building to protect against fire hazards. These systems can be customized to meet the specific needs of the building and the local fire codes.


ANCHOR BOLT

An anchor bolt is a type of fastener that is used to secure objects to concrete or masonry structures. It is typically made up of a threaded rod or stud that is embedded into a hole that has been drilled into the concrete or masonry, and a nut and washer that are tightened onto the exposed end of the rod or stud.

The anchor bolt provides a strong and permanent connection between the object and the structure, and is commonly used in construction, engineering, and industrial applications. Anchor bolts are available in various sizes, materials, and configurations, to meet the requirements of different applications. Some common types of anchor bolts include wedge anchor bolts, sleeve anchor bolts, and expansion anchor bolts.

PURLIN

Purlin cleats are metal brackets used to connect roof purlins to the main building frame. Purlins are horizontal structural members that run perpendicular to the roof slope and support the roof covering material, such as metal roofing panels.

Ms Anchor bolt.jpg

SAG ROD

SAG ROD used to prevent sagging of an open-web steel joist used as a purlin with its depth at right angles to a roof incline.

A tension component used to limit girt or purlin deflection in the direction of its weak axis or to limit sag in angle bracing.

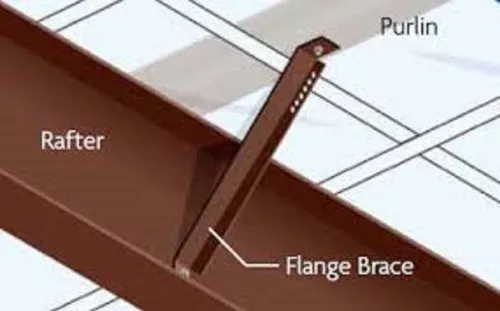

FLANGE BRACE

A flange brace is a type of support used in construction to provide stability to structures such as steel beams, columns, and other load-bearing elements. It is a brace that is designed to connect two flanges, which are the flat surfaces on either side of an I-beam or H-beam.



Flange braces are typically made of steel and are bolted or welded to the flanges of the beam. They are used to prevent the beam from buckling or twisting under load, which could cause it to fail. By connecting the two flanges, the brace provides additional support and prevents the beam from bending or twisting.


SANDWICH PANELS

Sandwich panels are composite materials consisting of two thin face sheets (usually made of metal, plastic, or composite material) and a lightweight core in between. The core material is usually made of foam, honeycomb, or corrugated metal. Sandwich panels are widely used in the construction industry as building facades, roofing, cladding, partitions, and structural components.

Also Read UsThe Importance of PEB Accessories for Your Building Project in Madurai

TYPES OF PEB STRUCTURAL SYSTEM

SANDWICH PANELS_edited.jpg
Tech-1 (1).jpg
